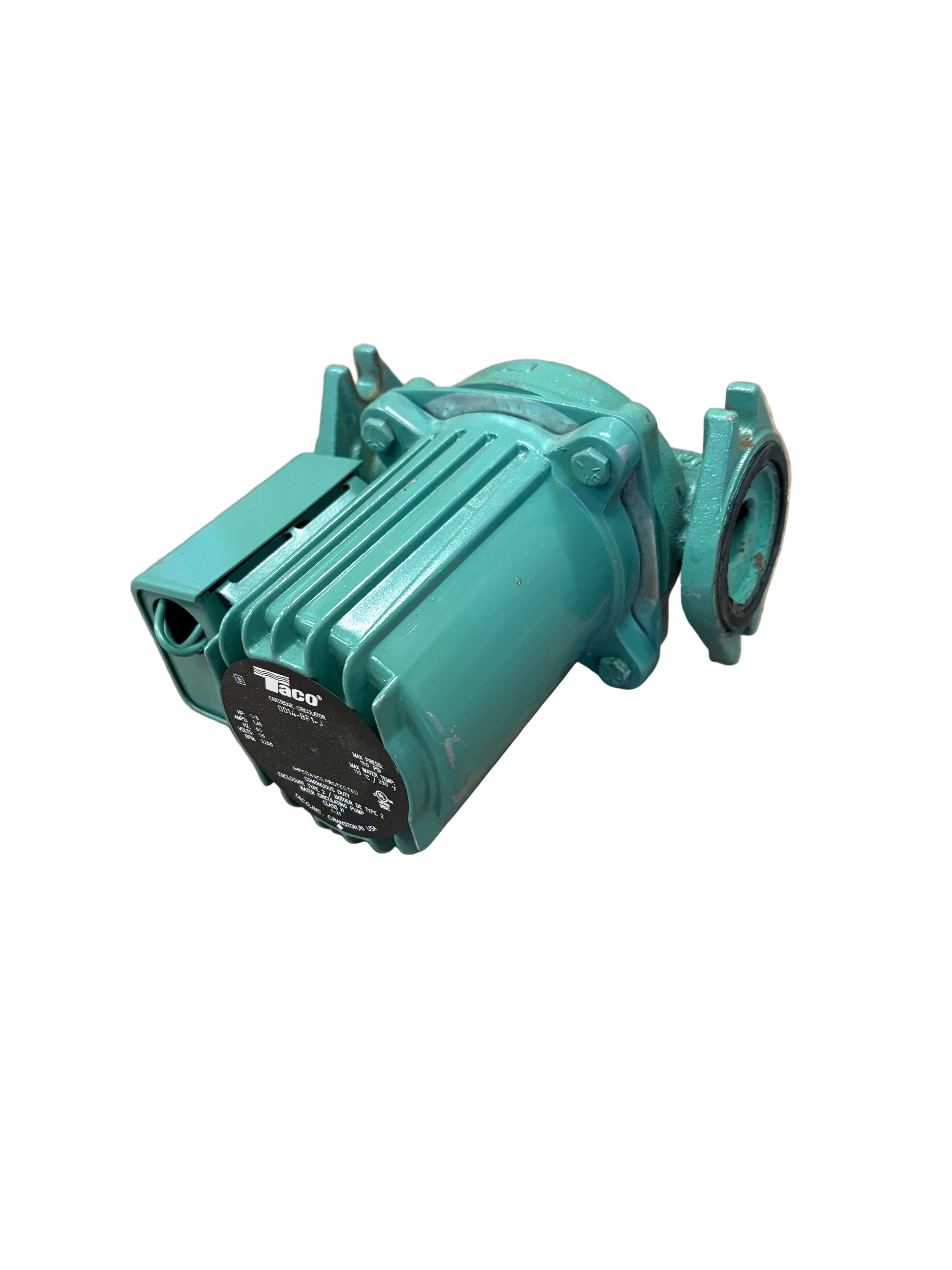

Taco 0014-F1 Circulator Pump – 1/8 HP, 115V

The Taco 0014-F1 Circulator Pump is built for high head / medium flow applications in large residential and light commercial heating and cooling systems. Common uses include high-mass boilers, commercial water heaters, and light commercial HVAC zoning.

Featuring Taco’s unique replaceable cartridge design, all moving parts can be replaced easily without removing the entire pump—saving time and cost on maintenance. Pump includes O-rings (flange kit not included; power supply cord p/n 556 sold separately).

Replaces:

• Grundfos UP26-64F, UPA3-64, UPS26-99FC (spd 3)

• Armstrong Astro50

• Wilo Star 21

Applications:

• Hydronic heating/cooling

• Radiant heating

• Zoning with pumps

• Hydro-Air fan coils

• And more

Performance Data:

• Flow Range: 0–32 GPM

• Head Range: 0–22 ft

• Minimum Fluid Temperature: 40°F (4°C)

• Maximum Fluid Temperature: 230°F (110°C)

• Maximum Working Pressure: 125 psi

• Connection Sizes: ¾", 1", 1-¼", 1-½" flanged

Electrical Data:

• Voltage: 115V

• Frequency: 60Hz

• Phase: 1

• Amps: 1.55A

• Horsepower: 1/8 HP

Part #: 0014-F1
